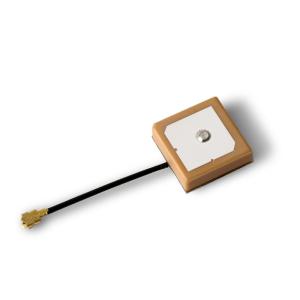

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

Brand Name : MS

Model Number : MS-GPSNZ-001

Certification : RoHS

Place of Origin : China

MOQ : 10 PCS

Price : USD$ 1 / PCS - USD$ 1.2 / PCS

Payment Terms : D/P

Supply Ability : 10000 PCS

Delivery Time : 5-8 days

Packaging Details : According to the quantity

Product Name : Internal GPS/GLONASS/BEIDOU/Galileo Active Antenna

Keywords : Active GPS Antenna

Frequency Range : 1575-1602MHz

Gain : 28dBi

VSWR : < 2.0

Impedance : 50 Ohm

Radiation Pattern : Omni-Directional

Polarization : RHCP

Cable Type : RG1.13 / RG1.37

Connector : IPEX (U.FL)

Axial Ratio : 4dB

Size : 25*25*10.5 mm

Contact Now

1. Product Name

Internal 28dBi Active Microstrip GPS/GLONASS/BEIDOU/Galileo Antenna

2. Description

--2.1 Applications

GPS/GLONASS/BEIDOU Navigation System

Vehicle Location System

Mobile Management

Telematices

Fleet Management

Tracking

--2.2 Features

Two Stage LNA with Filter

Small Footprint

L1 Band

28dBi High Gain

Active Type

3. Introduction

This is a high performance GPS active antenna with low consumption. It is designed to survive in all types of shells which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance internal GPS antenna

4. Specs

Electrical Properties

1.1	Frequency	1575-1602 MHz
1.2	Gain (peak)	28 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	RHCP
1.7	Input Voltage	3-5 V

Mechanical Properties

2.1	Cable	RG1.13 / RG1.37
2.2	Antenna Cover
2.3	Antenna Base
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)

5. Antenna Drawing

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

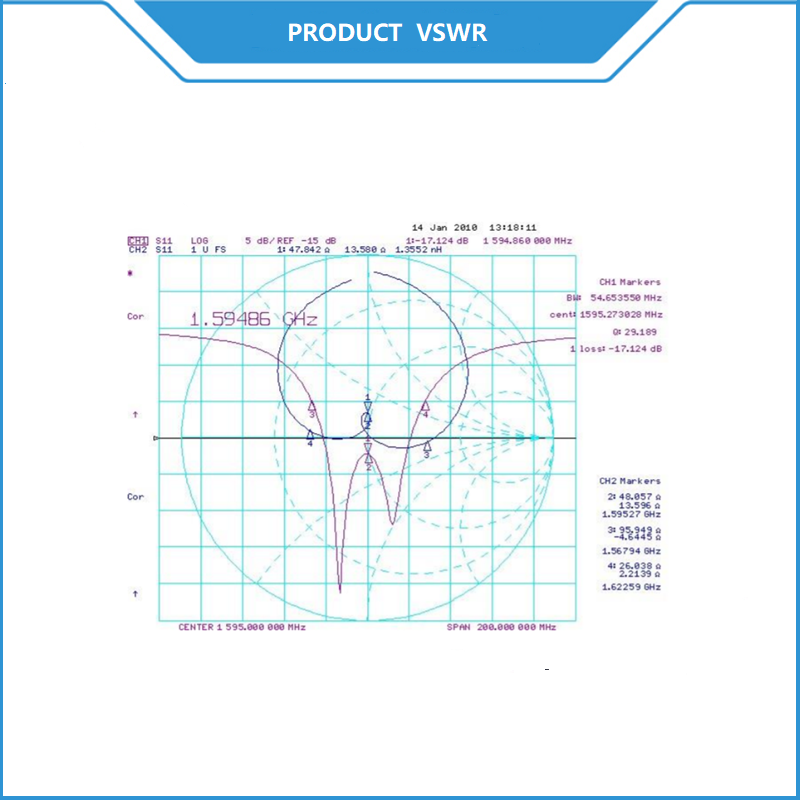

6. VSWR

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

7. Radiation Pattern On RHCP

Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna
